Roll pushers for paper and corrugated
MOVIROLL SERIES
Renova’s Moviroll roll pushers improve the productivity as they allow the operator to effortlessly and safely maneuver both large and small cylindrical loads
HANDLING OF PAPER ROLLS
Roll pushers specifically designed to safely move paper rolls

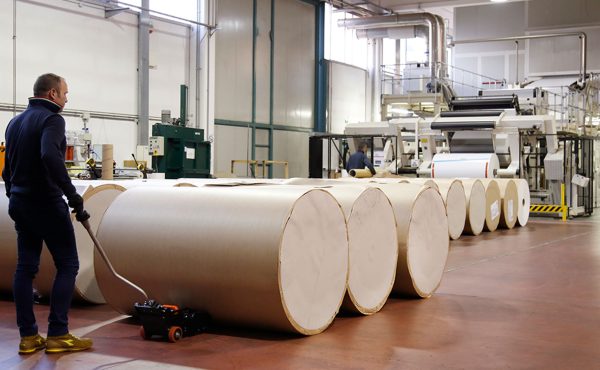

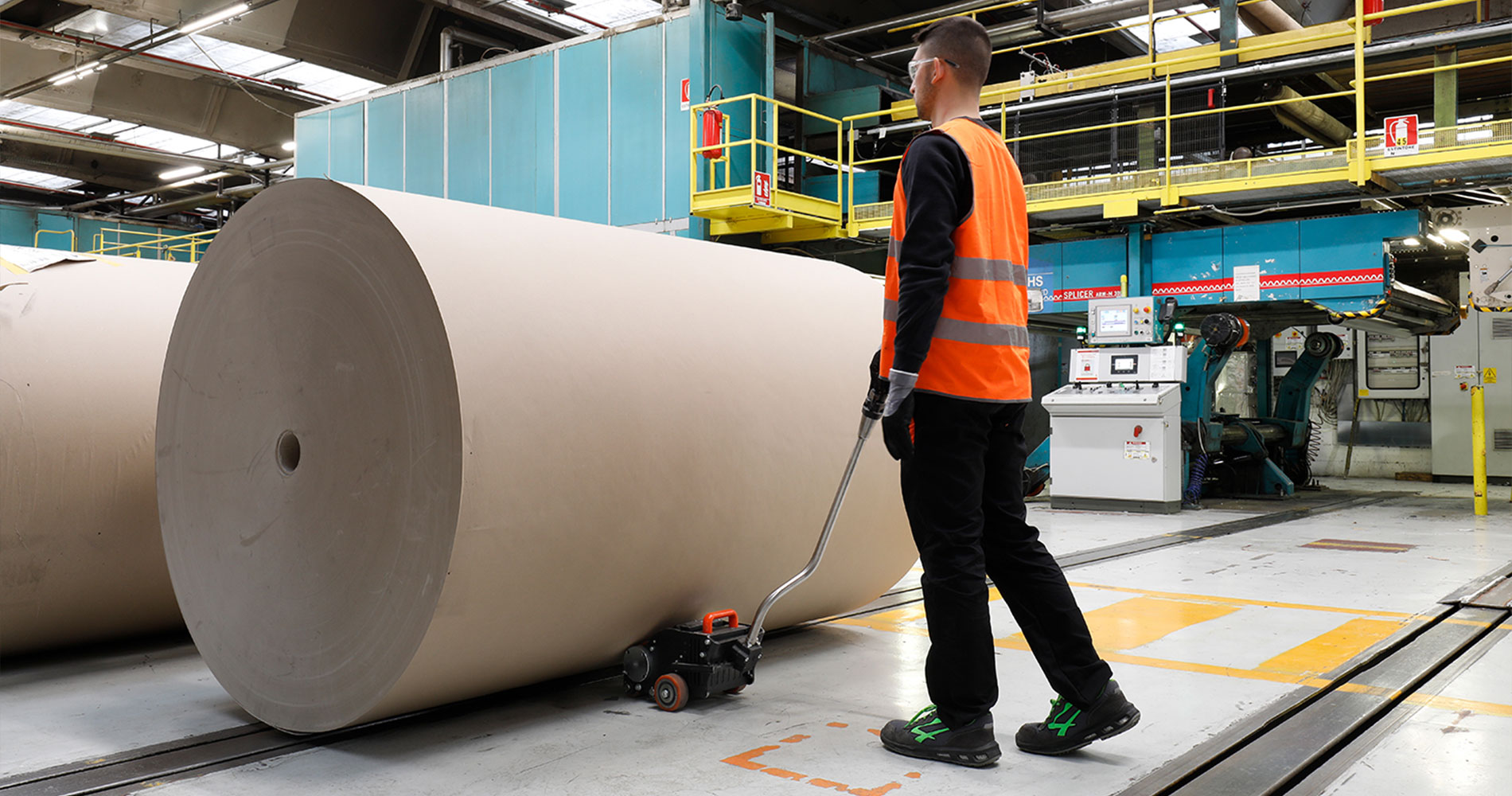

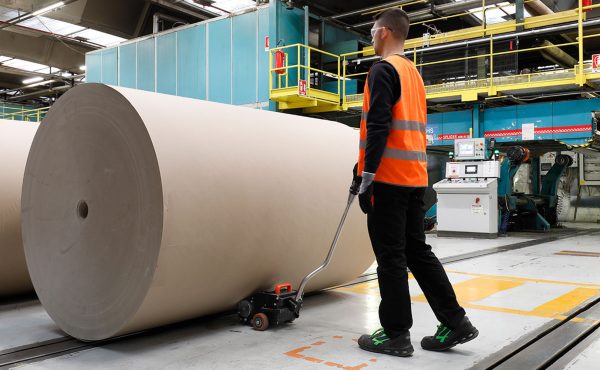

Product videoTutorial videoRenova’s Moviroll roll pusher allows the operator to effortlessly and safely manoeuvre both large and small paper rolls on a flat surface, even near the production line where forklifts cannot operate. As it allows agile handling of reels it saves time for other activities, thus improving the productivity in the plant.
Being specifically designed for the paper and paperboard industry, it can move reels up to 20 tons and with a diameter of 2.1 meters or place them on shuttle cart without any effort by the worker.
It is a safety measure that eliminates possible injuries caused by manual pushing, in accordance with the technical standard ISO 11228 “Ergonomics – Manual handling” part 2 “Pushing and pulling”.
Why MOVIROLL
FOR THE PAPER AND CORRUGATED INDUSTRY
HIGHER SAFETY LEVEL
You will easily and effortlessly move rolls of any size and weight
TIME SAVING
The operator can quickly handle the load leaving time for other operations
ECO-FRIENDLY
Completely free of any polluting substance, safe for the operator and the environment
2 YEAR WARRANTY
On both machine and battery
Roll pushers
WITH MOVIROLL FOR PAPER AND CORRUGATED SAY STOP TO
Moviroll models
Moviroll for paper and corrugated
MRE
DatasheetBattery roll pusher

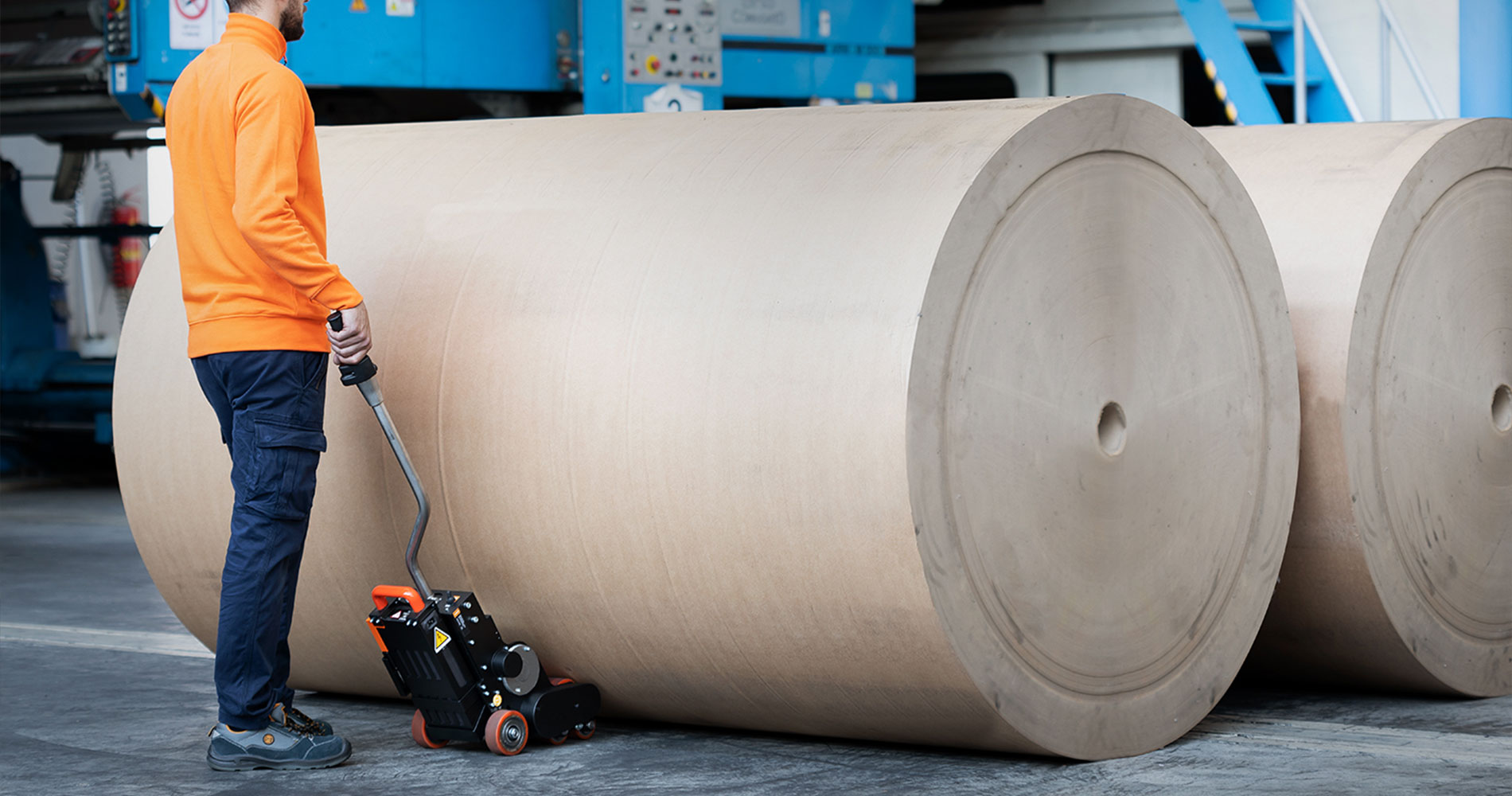

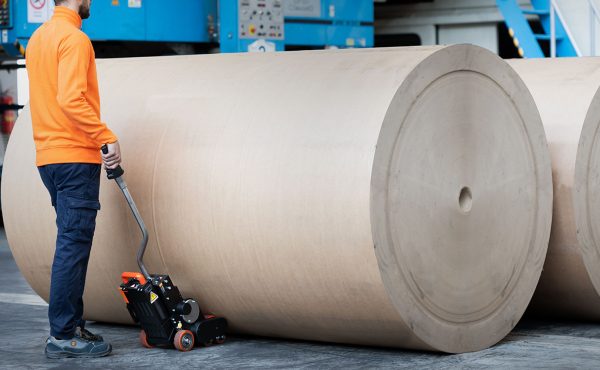

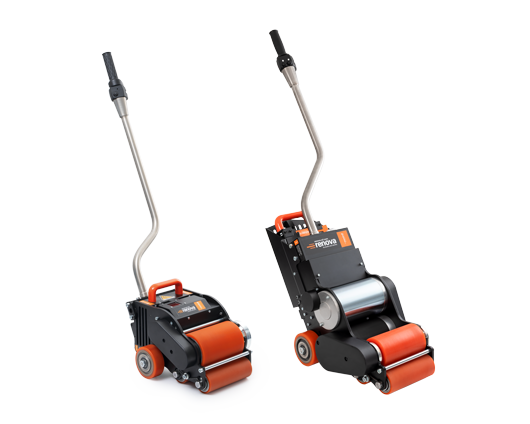

MRE allows the operator to move rolls on a flat surface and place them on the shuttle cart. Available with straight handle or curved handle ‘S’.
thrust force | lift force | max rolls diameter | motor | battery | max speed | unit weight | |
MRE 100 MRE 100 S | 12000 kg | 3000 kg | 2100 mm | 24 V DC IP 44 | lithium 24 V | 13 m/min | 45 kg |
MRE 200 MRE 200 S | 16000 kg | 4000 kg | 2100 mm | 24 V DC IP 44 | lithium 24 V | 10 m/min | 45 kg |
MRE 300 MRE 300 S | 20000 kg | 5000 kg | 2100 mm | 24 V DC IP 44 | lithium 24 V | 8 m/min | 45 kg |
Moviroll for paper and corrugated
MRE XS
DatasheetCompact battery roll pusher
MRE XS is compact and handy but heavy duty at the same time. It is the best solution when the need of separating two rolls arises. The handle can be mounted at two heights from the ground, 850 or 920 mm.
thrust force | lift force | max rolls diameter | motor | battery | max speed | unit weight | |
MRE 100 XS | 12000 kg | 3000 kg | 2100 mm | 48 V DC IP 44 brushless | lithium 48 V | 13 m/min | 30 kg |
MRE 200 XS | 16000 kg | 4000 kg | 2100 mm | 48 V DC IP 44 brushless | lithium 48 V | 9 m/min | 30 kg |
MRE 300 XS | 20000 kg | 5000 kg | 2100 mm | 48 V DC IP 44 brushless | lithium 48 V | 7 m/min | 45 kg |
Moviroll for paper and corrugated
MR
DatasheetPneumatic roll pusher

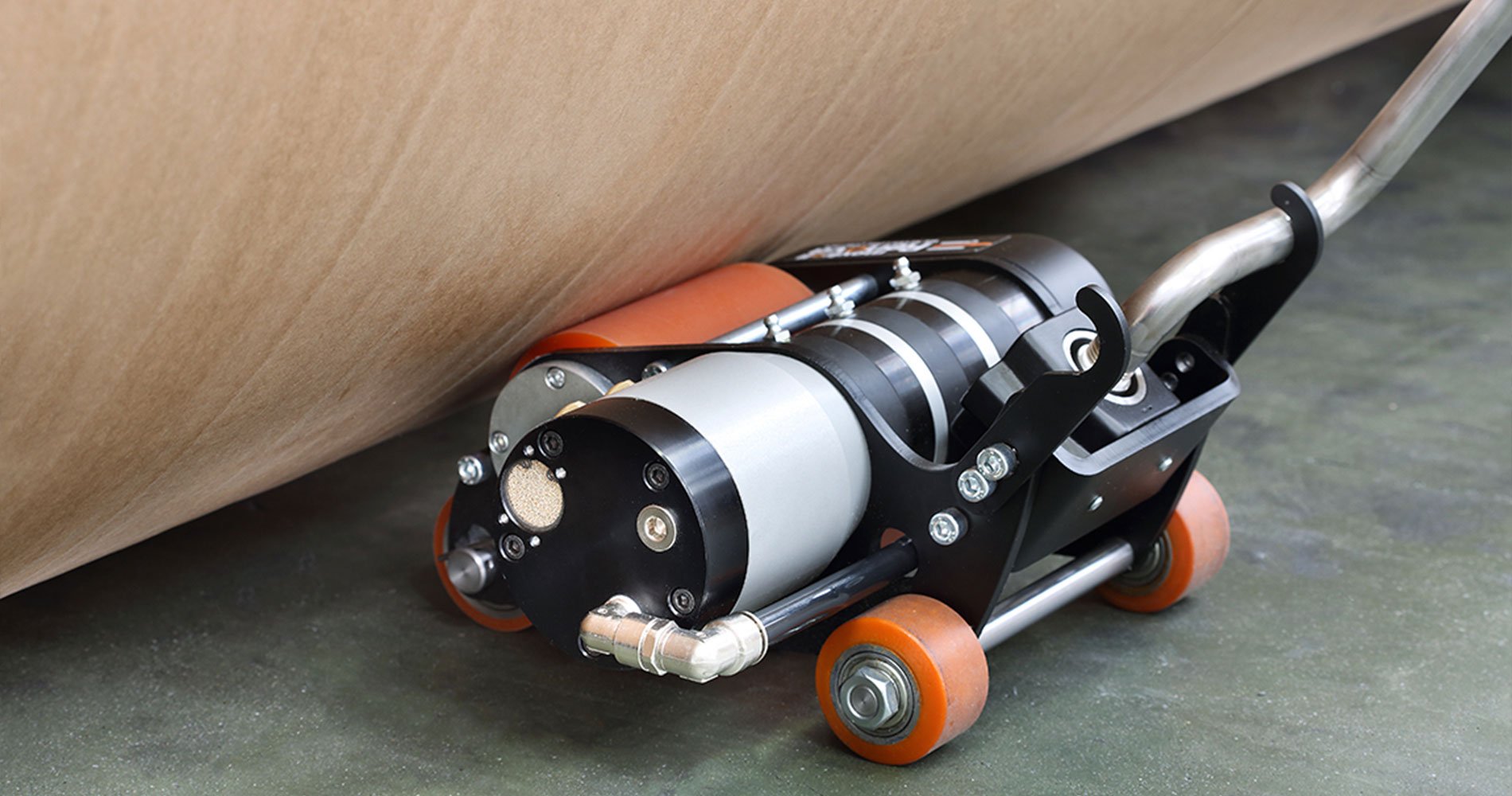

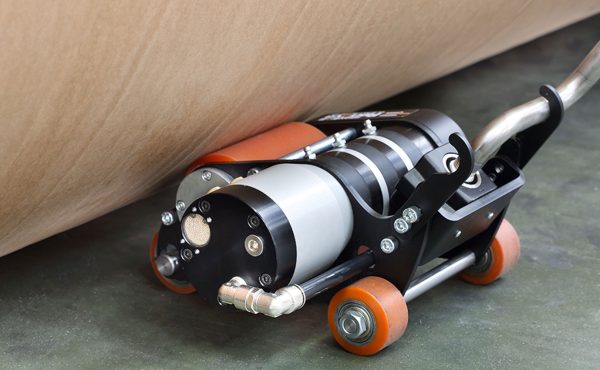

MR is the standard pneumatic model for any type of paper reel. A proper maintenance of the engine with lubricating oil guarantees its correct conservation and performances over time.
thrust force | lift force | max rolls diameter | max speed | air pressure | air consumption | unit weight | |
MR 100 MR 100 S | 10000 kg | 2500 kg | 2600 mm | 24 m/min | 6-7 bar | 28 l/sec | 24 kg |
MR 200 MR 200 S | 20000 kg | 5000 kg | 2600 mm | 20 m/min | 6-7 bar | 40 l/sec | 24 kg |
Moviroll for paper and corrugated
MR H
DatasheetPneumatic roll pusher
Twin to the standard version, MR H engine doesn’t need lubricating oil. This means sustaining the same performances with inferior consumptions and maintenance costs.
thrust force | lift force | max rolls diameter | max speed | air pressure | air consumption | unit weight | |
MR 100 H MR 100 SH | 10000 kg | 2500 kg | 2600 mm | 20 m/min | 6-7 bar | 22 l/sec | 20 kg |
MR 200 H MR 200 S H | 20000 kg | 5000 kg | 2600 mm | 18 m/min | 6-7 bar | 34 l/sec | 21.5 kg |
