Movicart
Motorized cart mover for the easy handling of carts up to 5 tons
BATTERY POWERED CART MOVER
Eco-friendly solution, safe for the operator and the environment
Product videoTutorial video

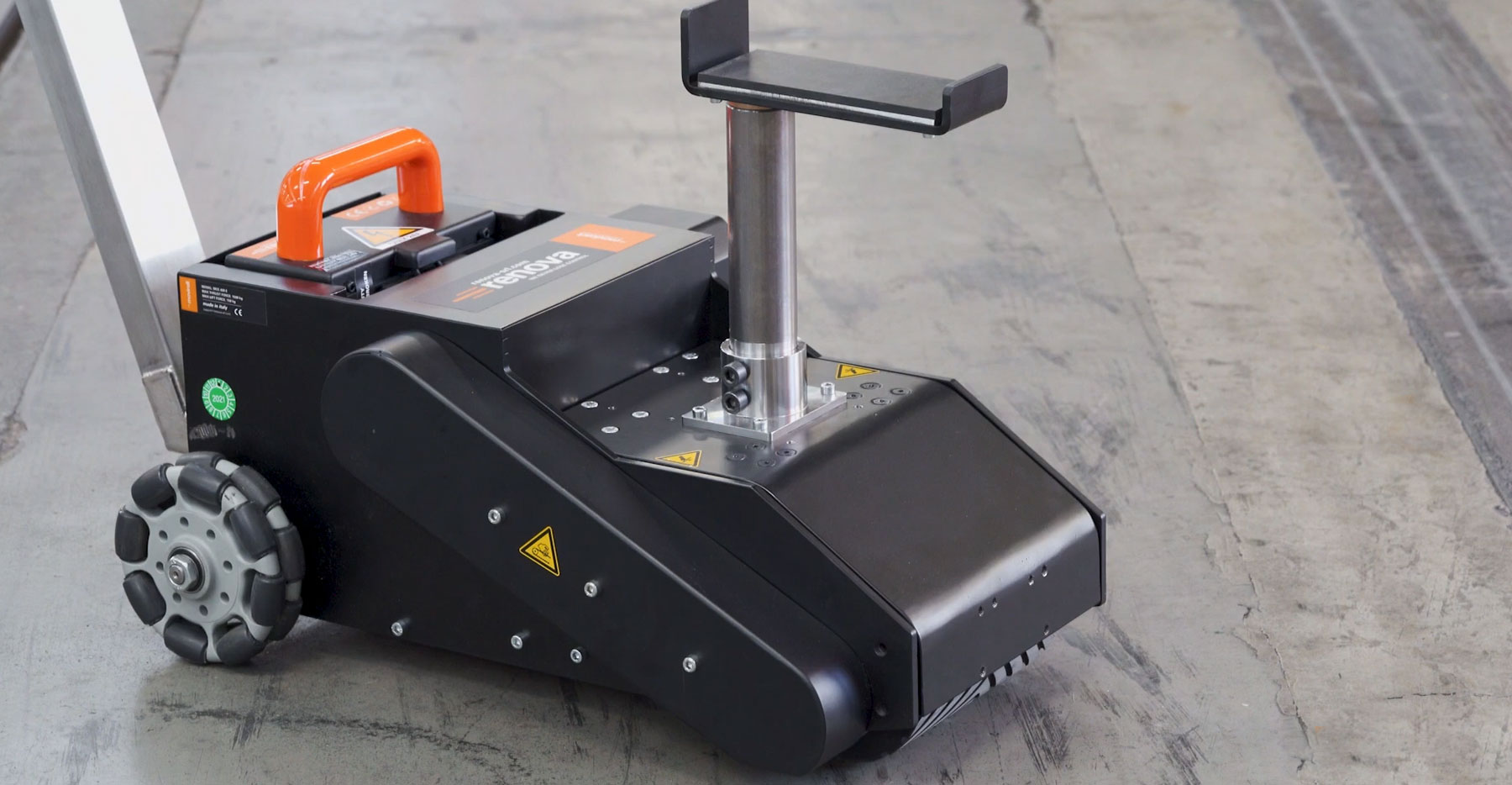

Movicart is a compact and handy system designed to safely push or pull your existing carts – both on wheels and rails – without any efforts for the operator.
Thanks to its mechanical system and the different cart gripper configurations, it is possible to move carts of different sizes and with different heights and weights, improving safety in the plant, but also saving time for other activities, thus increasing the productivity.
Handy and heavy-duty, it is able to move carts up to 5 tons (11000 lb). It is a convenient alternative to forklifts or transpallets as it can be used without a license and can operate in narrow spaces and where forklifts are not allowed.
WHY MOVICART
The ideal solution to safely move any cart
ON/OFF SWITCH
To preserve the battery charge
MAX SPEED ADJUSTMENT
To suit any operator needs
EMERGENCY STOP BELLY BUTTON
As a safety precaution, Movicart will reverse direction from backing up to forward if the button hits the operator
OMNIDIRECTIONAL WHEELS
Effortlessly change cart direction
UP/DOWN BUTTONS
Cart gripper raising and lowering controls
FORWARD AND REVERSE GEAR
Butterfly button for a quick change of direction
BATTERY STATUS LEDS
Easily see when the battery needs to be recharged
LIFTER
Place the movicart under the cart and then smoothly hook it at the right height
Material handling equipment
WITH MOVICART SAY STOP TO
Movicart
CONFIGURATIONS
Thanks to its various configurations, Movicart can move carts of different sizes, heights, and weights
CART GRIPPERS
| cart frame (mm) | A | B | C |
| 30 – 50 | MCEP0068 | MCEP0077 | MCEP0087 |
| 50 – 80 | MCEP0070 | MCEP0080 | MCEP0088 |
| 80 – 120 | MCEP0072 | MCEP0083 | MCEP0089 |
| 120 – 150 | MCEP0074 | MCEP0086 | MCEP0090 |
BUSHINGS
| A (mm) | 40 | 75 | 110 | 145 | 180 | 215 |
| code | MCE P0096 |
MCE P0097 |
MCE P0098 |
MCE P0099 |
MCE P0100 |
MCE P0101 |
HANDLE EXTENSION
Handle extension available to space out from protruding loads.
| A (mm) | 610 |
| code | MCEP0104 |
Movicart models
Datasheet
Movicart
MCE 400
| thrust force | motor | battery | max speed | unit weight | |
| MCE 400 | 400 kg | 24 V DC IP 44 brushless | lithium 24 V | 30 m/min | 38 kg |
Movicart
MCE 400 E
| thrust force | motor | battery | max speed | unit weight | |
| MCE 400 E | 1500 kg | 24 V DC IP 44 brushless | lithium 24 V | 30 m/min | 38 kg |
Movicart
MCE 500
| thrust force | motor | battery | max speed | unit weight | |
| MCE 500 | 5000 kg | 24 V DC IP 44 brushless | lithium 24 V | 10 m/min | 60 kg |
LITHIUM BATTERY
We have always equipped our battery driven models with the highest quality lithium batteries. In this way we provide the highest performance systems with the longest running time, respecting the environment and safeguarding the health of the operator.
